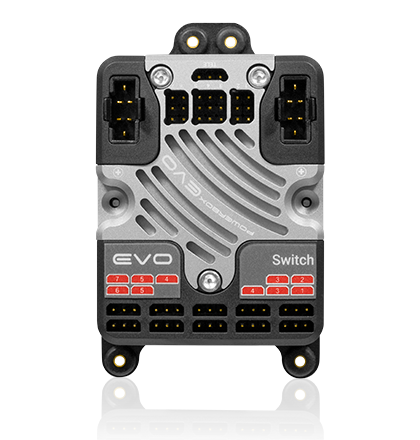

PowerBox EVO

236.70€

CENTRALINAS

PowerBox

Clique para ampliar

Informação:

Opinião:

Dê a sua opinião

Powerful dual battery power supply with 7 channels, voltage regulators and telemetry.

Potente fonte de alimentação de bateria dupla com 7 canais, reguladores de tensão e telemetria.

Features 7 channels 10 outputs High-performance battery backer with high continuous load capacity All power electronics duplicated Redundant electronic switch Four selectable output voltages: 6.0V, 7.4V, 7.8V or unregulated Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum, SRXL2, Multiplex M-Link, JR X-BUS and Graupner HoTT All features can be controlled from PowerBox and Jeti transmitters Signal amplification for all 10 outputs Voltage indication by means of tri-colour LEDs Supports four battery types: LiPo, LiIon, NiMh/NiCd, LiFe Servo feedback current suppression Machined high-performance heat-sink for optimised heat dissipation Machined, anodised aluminium switch case Compact format Technical Data Operating voltage 4.0V - 9.0V Power supply 2S LiPo, 2S Lilon, 2S LiFePo, 5S NiMH Current drain Power-on state 66mA Current drain Standby 8μA Maximum load current 2x10 A (<30s 2x 40A) Drop-out voltage 0.3V Output voltage 6.0V, 7.4V, 7.8V, unregulated Signal input PWM Supported RC systems PowerBox, Futaba, Jeti, Spektrum, Multiplex, JR, G Channels 7 Servo sockets 10 Supported telemetry systems P²BUS, S.BUS2, EX-BUS, SRXL2, M-Link, Hott, JR-DMS Dimensions 89 x 55 x 18 mm Weight 69g Weight Sensor Switch 8g Temperature range -30°C to +105°C

Este produto foi introduzido em Quinta 29 Junho, 2023.
